rootfig

Publication-quality figures straight from ROOT trees, without ROOT.

import rootfig as rf

rf.plot("events.root", "Muon_pt", tree="events", selection="Muon_pt > 20", bins=50)

rootfig is the TTree::Draw workflow for the Scientific Python HEP stack. It reads with uproot, computes with Awkward Array, fills hist histograms and draws with mplhep, and adds the glue those libraries leave to you: predictable per-event/per-object selection semantics, weights, shared binning across samples, normalisation, ratio panels and good defaults.

• Quick start

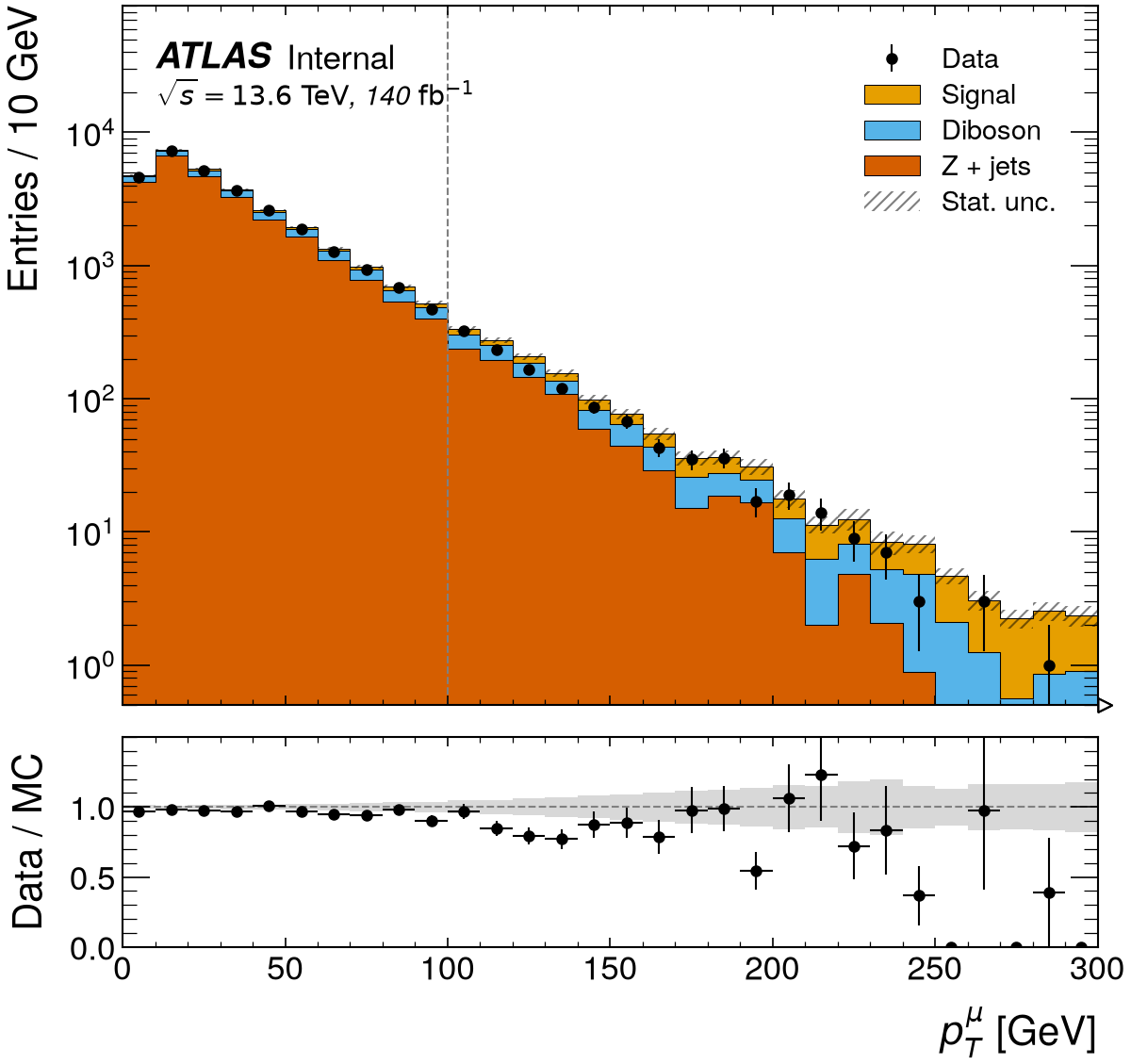

• Gallery: every feature as a figure next to its code, in each experiment's style
• Expressions and selections
• Samples, variables, cuts and styles
• Plotting options
• Relation to the ecosystem
• API reference
